Time-lapse Incubator

Time-lapse Incubator

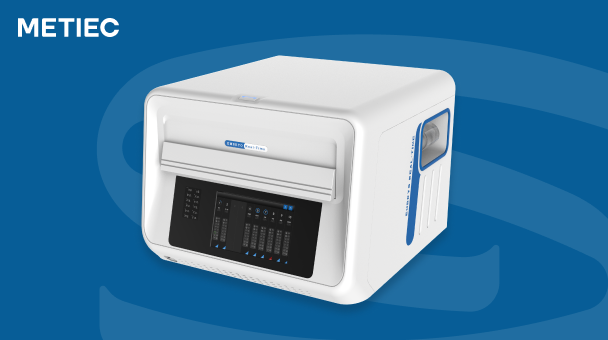

A Time-lapse Incubator Beyond Your Expectations

The TLS301 Time-lapse Incubator, consisting of a temperature control system,

a gas control system, a time-lapse imaging system, and a recognition system,

is capable of capturing a series of independent measurement data during

embryonic development.

An intuitive and user-friendly operational experience

Safe and Stable Culture Environment

Gas and Temperature Control Systems Ensure Environmental Stability

The gas and temperature control systems of the TLS301 feature numerous innovative details ensuring the stability of the culture environment. After opening the chamber, the recovery times for carbon dioxide and oxygen concentrations are both within 90 seconds, with a control accuracy of ±0.1%. The temperature recovery time is controlled within 60 seconds, and the unique temperature control mechanism enables the chamber temperature control accuracy to reach ±0.1°C.

Low Light Exposure Damage, Safe Embryonic Growth

TLS301 employs a 635nm light source with minimal exposure duration, enabling embryos to grow in a safe environment with low light-induced damage.
The illumination time for a single embryo with TLS301 is less than 0.003 seconds, and the total daily exposure time is under 4 seconds.

High-Quality and Crystal-Clear Imaging Quality

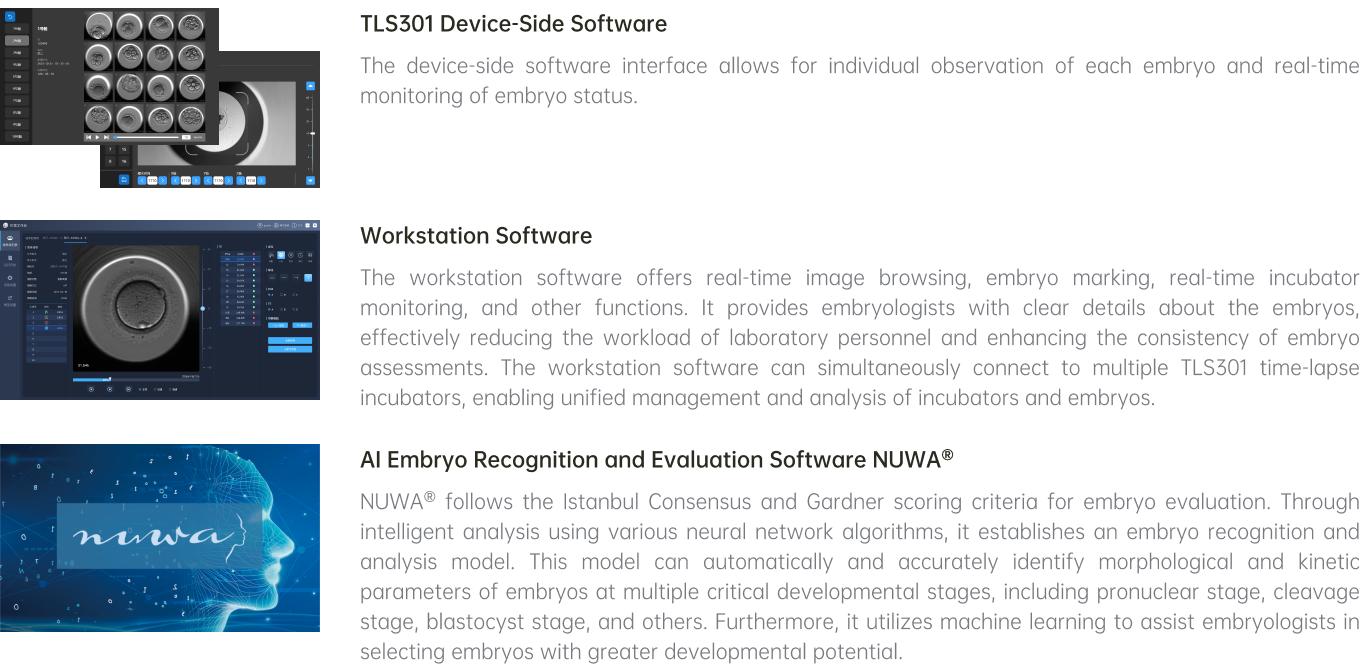

Accurate and Intelligent Embryo Analysis

Fully Connected, Beyond Expectations

The TLS301 seamlessly integrates with the Mutual Creation Management System, Monitoring System, Verification System, and the intelligent service platform "Aileyun" APP or mini-program, providing you with complete, comprehensive, secure, and convenient usage scenarios and data interaction functions.
